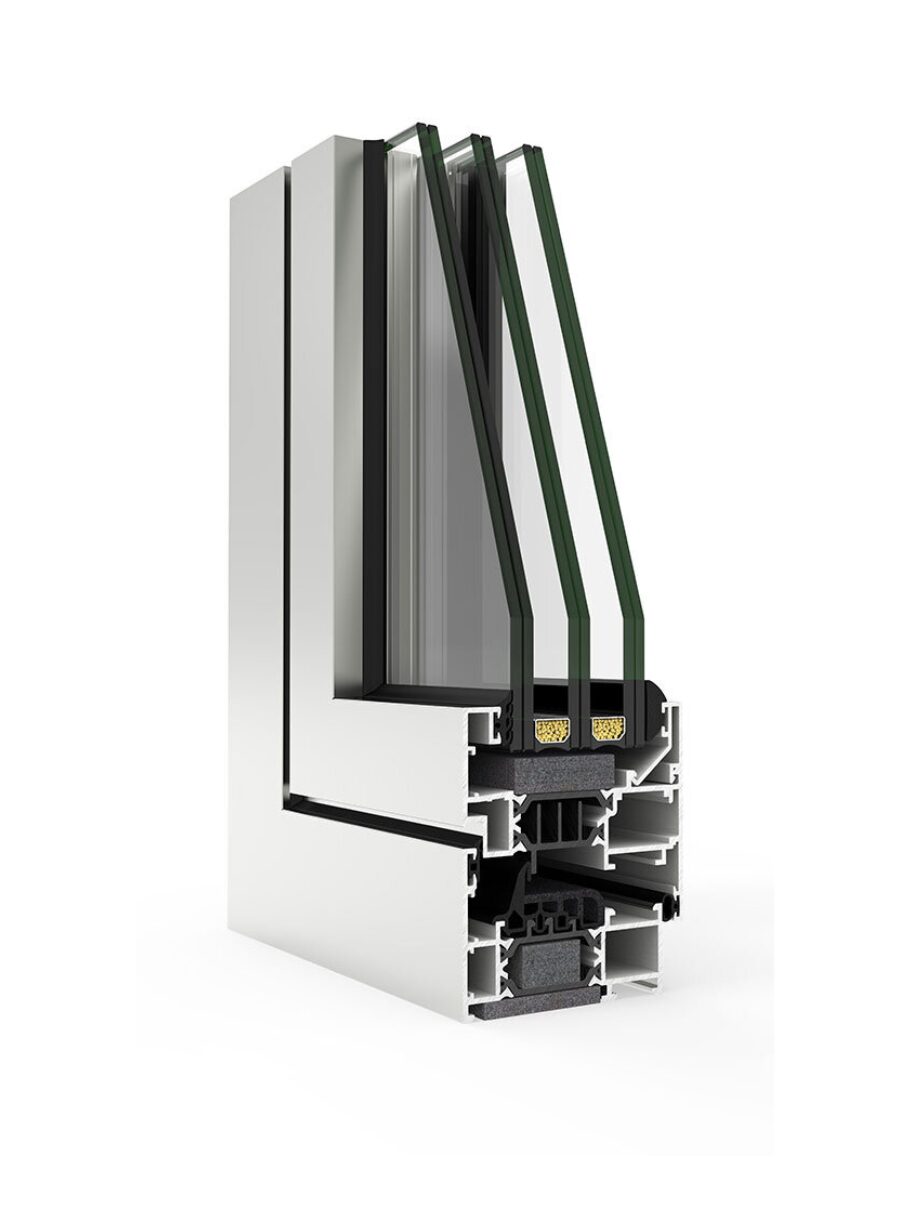

Key Features
- Frame depth: 70 mm
- Polyamide strip length: 32 to 35 mm
- Thermal transmittance: from 0.9 W/m²K
- Maximum glazing thickness: 55 mm
- Compatible with Evo Security system and concealed hinges
Technical Specifications
Dimensions and Weight
- Maximum sash dimensions: Width 1,500 mm, Height 2,600 mm
- Maximum sash weight: 160 Kg (consult for specific types)
Profile Details
- Frame: 70 mm / Sash: 78 mm
- Profile thickness: Window 1.5 mm, Door 1.7 mm
Opening Options
- Inward opening: Side hung, turn & tilt, tilt & parallel, bottom hung
- Outward opening: Side-hung, top hung projecting, hidden pivoting (vertical or horizontal axis)
Finish Options
- Bicolor systems available
- Powder coating: RAL colors, mottled, rough, wood effect, anti-bacterial
- Anodized finish
Performance
Insulation and Resistance
- Thermal transmittance (Uw): from 0.9 W/m²K (consult for specifics)
- Acoustic insulation: Up to Rw=44 dB
- Air permeability (EN 12207): CLASS 4
- Water tightness (EN 12208): CLASS E1200
- Wind resistance (EN 12210): CLASS C5
Security
- Burglar resistance (EN 1627): Grade RC2 (WK2) with EVO SECURITY hardware
- PAS 24 Security Test: Passed
Certifications
- CSTB Laboratory DTA Certification: Ref. 6/17-2363
- ATG Certification: Nº 3204
Note: Performance ratings based on specific test configurations. Consult manufacturer for details on maximum weights, dimensions, and glazing options for specific types.
