Overview:

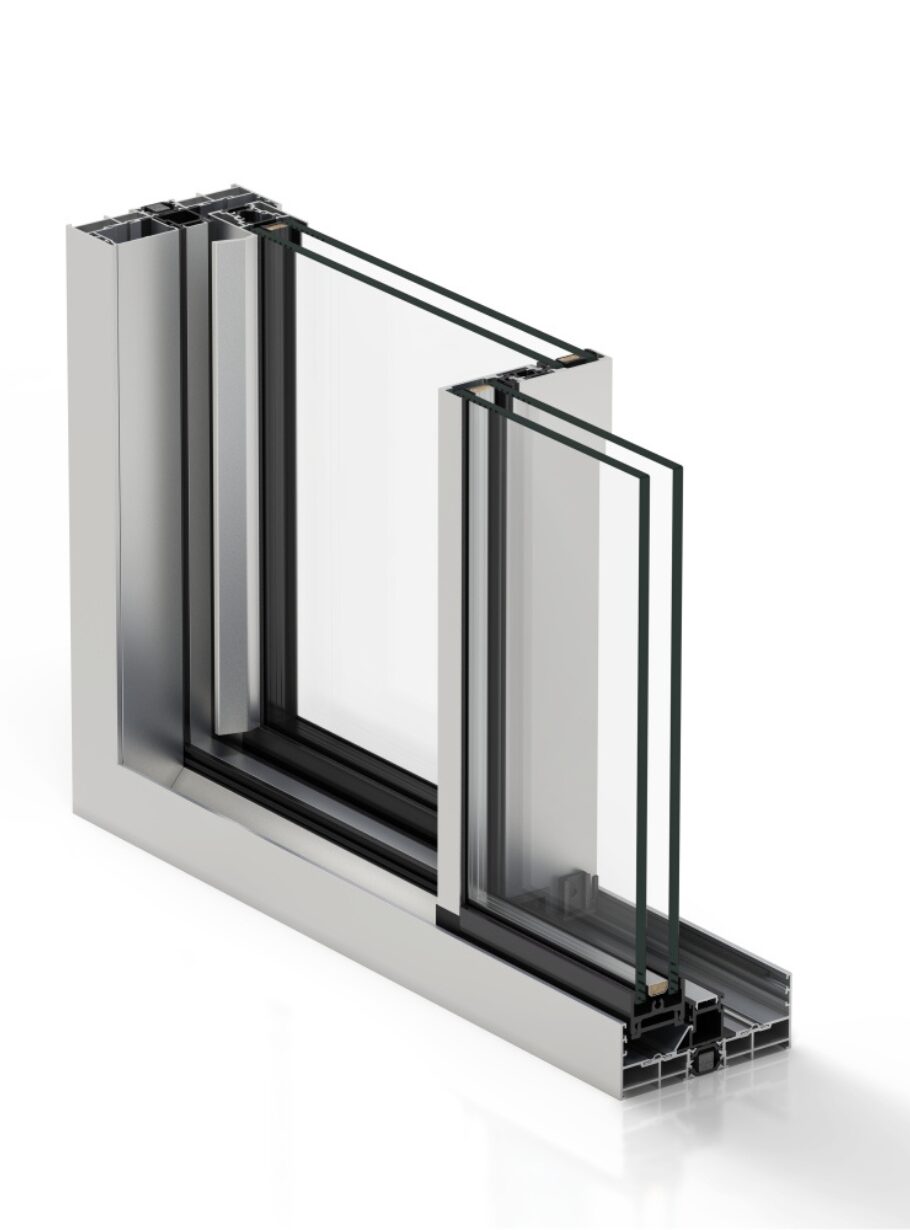

The Cor Vision sliding system offers maximum glazing area with minimal visible profiles, providing an elegant and modern solution for windows and doors.
Key Features:
- Interlock profile: 20 mm
- Maximum surface glazing area
- Possibility to embed bottom, top, and lateral frames within the wall
- Pocket system option

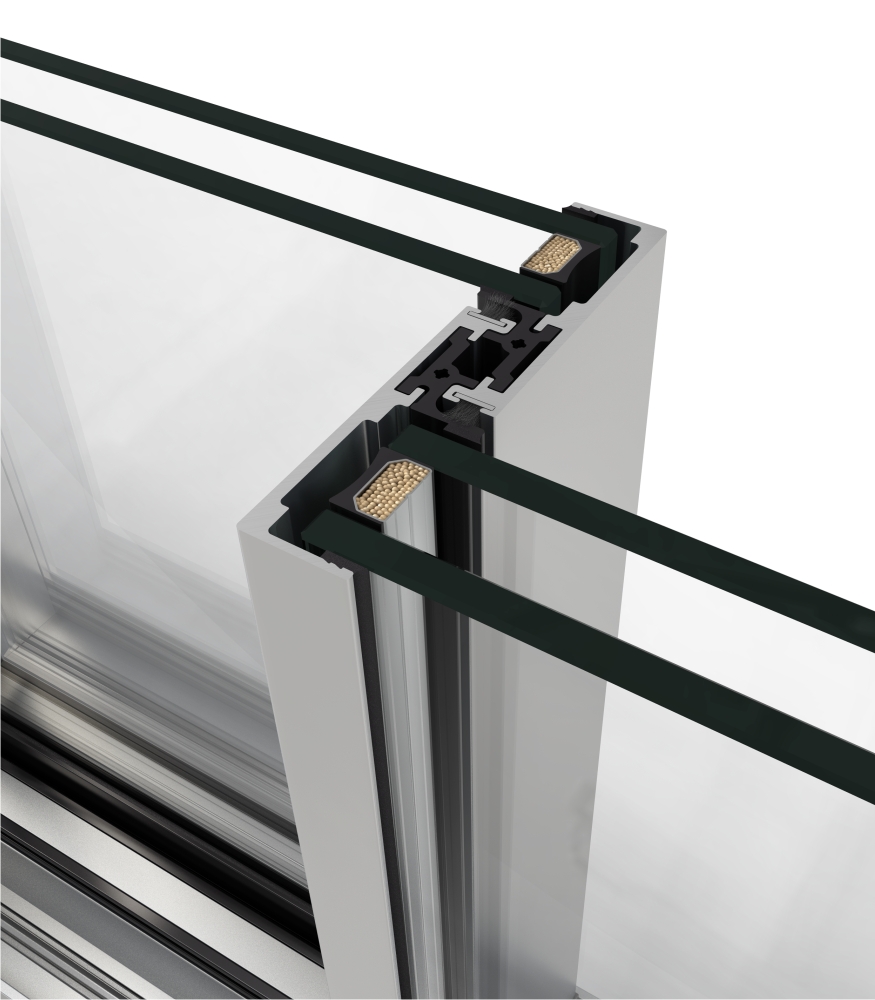

- 90° corner sash encounters without mullion
Technical Specifications:
- Maximum glazing thickness: 30 mm
- Frame depth: 116 mm – 182 mm (3 rails)
- Sash depth: 37 mm
- Profile thickness: 1.7 mm (Door)
- Polyamide strip length: 16 to 24 mm
Configurations:
- Sliding options: 1, 2, 3, 4 & 6 sashes
- Rail options: 1, 2 or 3 rails
- Fixed panel combinations: 1 sash + 1 fixed / 2 sashes + 1 fixed
- Galandage (pocket) option: 1, 2, 3 & 4 sashes
- Interior and exterior 90° corner without mullion
Performance:
- Maximum dimensions per sash: Width 2,500 mm, Height 3,000 mm
- Maximum weight per sash: 320 Kg
- Thermal transmittance: Uw from 1.3 W/m²K
- Acoustic insulation: Up to Rw=41 dB
- Air permeability (EN 12207): CLASS 4
- Water tightness (EN 12208): CLASS 7A
- Wind resistance (EN 12210): CLASS C5
Finishes:
- Bicolor systems available
- Powder coating: RAL colors, mottled and rough textures
- Wood effect powder coating
- Anti-bacterial powder coating
- Anodized finish
