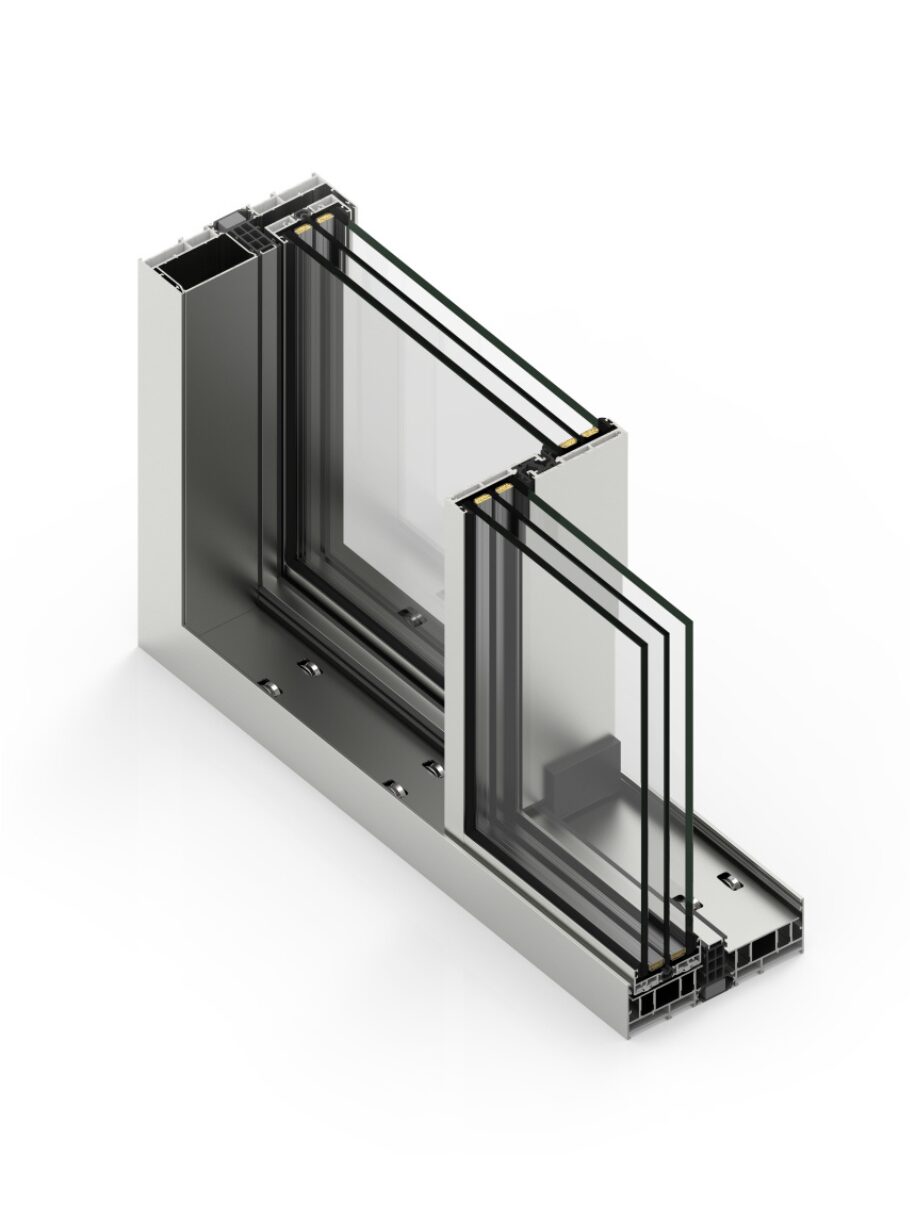

Cor Vision Plus Sliding
Overview:
The Cor Vision Plus is a minimalist sliding system designed for large dimensions, offering exceptional thermal and acoustic performance with a nearly invisible frame.
Key Features:
- Suitable for large dimensions (up to 4,000 mm/sash in width or height)
- 94% glass surface
- Visible section of just 25 mm
- Motorized opening option for weights up to 700 kg
- Manual opening for weights up to 400 kg
- Multipoint lock systems available
- Smooth sliding movement with frame-mounted rollers
- 90° corner sash encounters without mullion
- Motorized version allows complete concealment of sash within frame when closed
Technical Specifications:
- Maximum glazing thickness: 54 mm
- Frame depth: 180 mm – 278 mm (3 rails)
- Sash depth: 69 mm
- Profile thickness: 2.0 mm (Door)
- Polyamide strip length: 18 to 40 mm
Configurations:
- Sliding options: 2, 4 or 6 sashes
- Rail options: 1 or 3 rails
- Fixed panel combinations: 1 sash + 1 fixed / 2 sashes + 1 fixed
- 90° corner sash encounters without mullion
- Galandage (pocket) option: 1, 2, 3, and 4 sashes
Performance:
- Maximum dimensions per sash: Width 4,000 mm, Height 4,000 mm
- Maximum glass surface: ≤ 14 m²
- Maximum weight per sash: 400 Kg (Manual), 700 Kg (Motorized)
- Thermal transmittance: Uw from 0.9 W/m²K
- Acoustic insulation: Up to Rw=43 dB
- Air permeability (EN 12207:2000): CLASS 4
- Water tightness (EN 12208:2000): CLASS 7A* / 9A**
- Wind resistance (EN 12210:2000): CLASS C3* / C4**
Finishes:
- Bicolor systems available
- Powder coating: RAL colors, mottled and rough textures
- Wood effect powder coating
- Anti-bacterial powder coating
- Anodized finish
*Reference test: Balcony 4.00 x 3.00 m. 2 sashes. **Reference test: 4.00 x 3.00 m. 1 sash + 1 fixed
