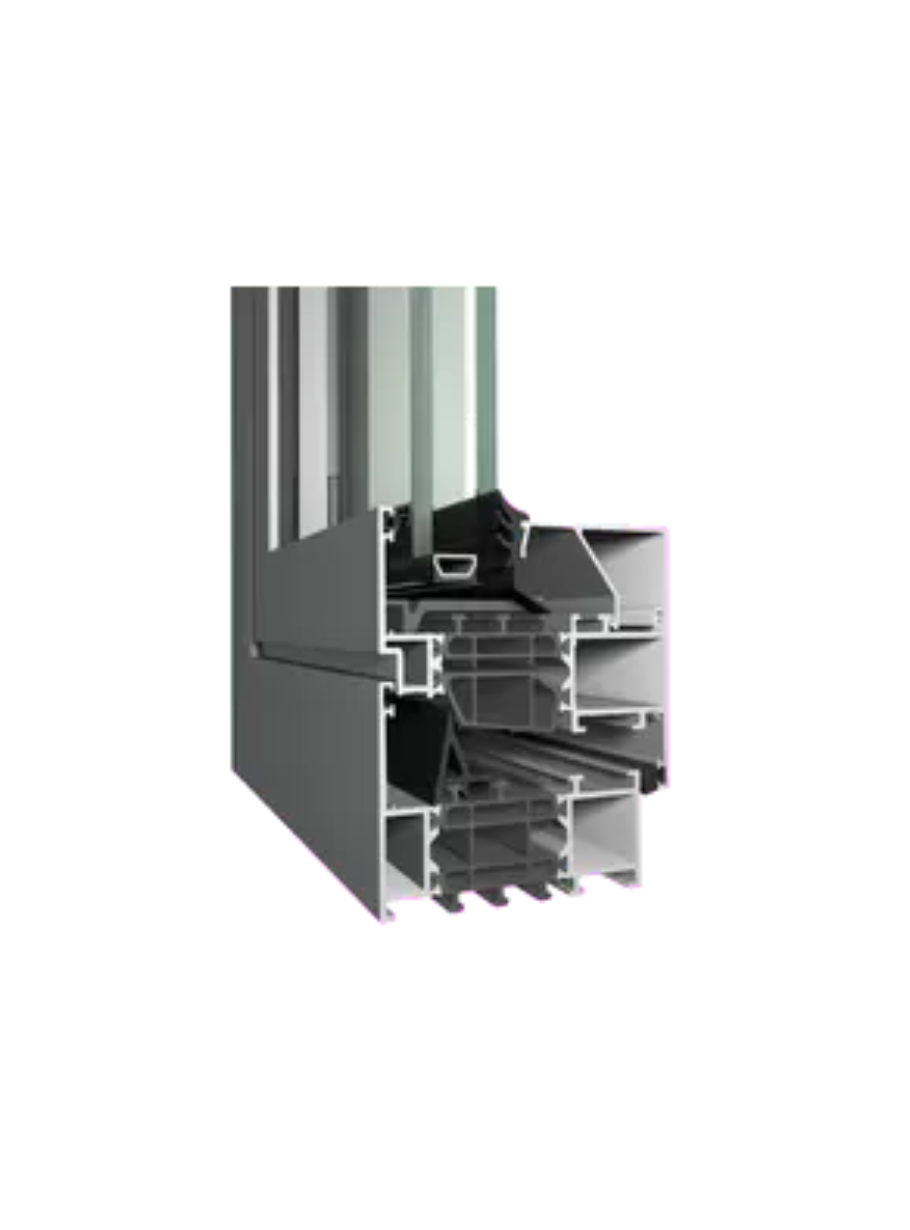

Overview The MasterLine 8 Functional is a high-performance window system that combines superior thermal insulation with exceptional comfort and safety features. This versatile system offers comprehensive solutions for various architectural applications while maintaining optimal performance standards.
Key Features
Energy Performance
- Thermal insulation values:
- Frame (Uf): 1.3 W/m²K
- Window (Uw): 0.89 W/m²K
- Frame-vent dependencies:
- Ug: 0.6W/m²K
- psi: 0.032W/mK
- @123x148cm (50mm sight line)
- 36mm glass
Comfort Features
- Air permeability: Class 4 (600Pa)
- Water resistance: Class E900 (900Pa)
- Wind load resistance: Class C5 (2000Pa)
- Acoustic performance:
- Tl,fr: 46(-1,-3) dB
- DC: 44(-2,-4) dB
- Opening & closing endurance: Class 3 (20000 cycles)
Safety & Security
- Burglar resistance: RC2 – RC3 – PAS 24
- Impact resistance: I5 – E5
- Operating Forces: Class 1
Dimensional Capabilities
- Vent height range:
- Minimum: 600 mm
- Maximum: 2800 mm
- Vent width range:
- Minimum: 450 mm
- Maximum: 1700 mm
- Weight capacity:
- Vent weight: 200 kg
- Glass weight: 1200 kg
Technical Details
- Sightline dimensions:
- Min. frame width (inward): 53 mm
- Min. frame width (outward): 20 mm
- Min. vent width (inward): 37 mm
- Min. vent width (outward): 96 mm
- Profile depths:
- Frame: 77 mm
- Vent: 87 mm
- Frame-vent: 87 mm
Glazing Options
- Rebate height: 27 mm
- Glazing methods:
- Dry glazing
- Siliconized glazing
- Internal glazing
- External glazing
- Glazing bead
- Structural Glued Glazing
- Glass thickness range:
- Frame/element: 4-66 mm
- Vent: 13-72 mm
Perfect For
- Commercial buildings
- Residential projects
- Educational facilities
- Healthcare buildings
- Office complexes
- High-performance constructions
Why Choose MasterLine 8 Functional? The MasterLine 8 Functional system represents a comprehensive window solution that excels in every aspect of performance. Its outstanding thermal and acoustic properties, combined with robust security features and flexible glazing options, make it ideal for projects requiring the highest standards of quality and performance. The system’s versatile design capabilities and extensive dimensional range allow architects to meet diverse project requirements while ensuring optimal energy efficiency and user comfort.
